Aware Platform

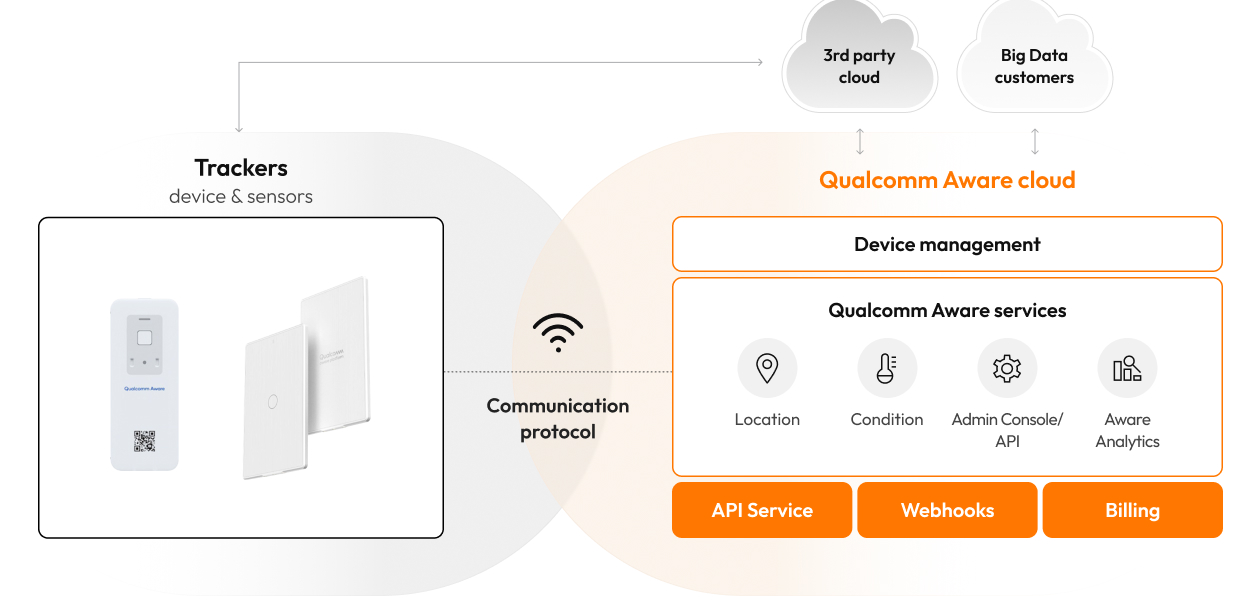

Qualcomm Aware is a cloud-based IoT asset tracking
and management platform.

Qualcomm Aware cloud-based IoT platform interface showing real-time asset tracking dashboard

Features

    • Real-time tracking (GNSS, Wi-Fi, Cellular, BLE)
    • API/SDK integration with ERP/CRM systems
    • Remote device monitoring and firmware updates
    • High scalability and global connectivity (NB-IoT, LTE-M, etc.)
    • Customizable dashboards, alerts, and reports
  • Real-time visibility icon

    Accurate, real-time visibility

  • Low power and extended battery life icon

    Extended battery life & low power

  • Enterprise integration icon

    Integration with enterprise systems

  • Security and GDPR compliance icon

    Secure

    GDPR compliant, encrypted data

  • Qualcomm reliability icon

    Reliable hardware/software by Qualcomm

Applications Field

  • Logistics and cold chain tracking: warehouse worker scanning packages for shipment monitoring

    Logistics & Cold Chain

    Tracking goods, monitor temperature

  • Construction site equipment and vehicle tracking application

    Construction

    Tracking of equipment and vehicles

  • Smart city and agriculture infrastructure monitoring application

    Smart City & Agriculture

    Monitoring the location and condition of infrastructure and equipments

  • Healthcare application: tracking medical devices and patient monitoring

    Healthcare

    Monitoring medical device location and patients

  • Manufacturing application: factory equipment and worker location tracking

    Manufacturing

    Tracking of factory equipment and
    workers’ location, motion, and shock events

  • Retail and payment terminal asset management application

    Retail & Payment

    Asset management of in-store logistics and
    payment terminals

Device Specification

  • QTS110 IoT tracker device, rectangular form factor, 50mm x 125mm x 14mm with USB-C charging
  • QTS112 IoT tracker device, credit card-sized form factor, 86mm x 56mm x 3.5mm
Category QTS110 QTS112
Dimensions 50 mm x 125 mm x 14 mm EU) 86mm x 56mm x 3.5mm
GL) 88mm x 56mm x 3.5mm
Weight 125g EU) 23g, card-size
GL) 27g, card-size
Operating Temperature -20°C to 60°C (discharging), 5°C to 60°C (charging) -20°C to 60°C (discharging), 5°C to 60°C (charging)
Humidity Up to 85% relative humidity, non-condensing Up to 85% relative humidity, non-condensing
Cellular Network
  • Multi-mode: LTE Cat M1, LTE Cat NB2, EGPRS/2GLTE (Cat M1/NB2)
  • Low Bands: B5, B8, B12, B13, B14, B18, B19, B20, B26, B27, B28, B85
  • Mid Bands: B1, B2, B3, B4, B25, B66
  • 2G: GSM850, GSM900, GSM1800, GSM1900
  • eSIM: Embedded eSIM enables global connectivity via 2G, eMTC, or NB-IoT
  • LTE Cat 1 bis (3GPP Rel.14)
  • EU model: 1/3/5/7/8/20/28
  • GL model: 1/2/3/4/5/7/8/12/13/20/28
  • eSIM: Embedded eSIM enables instant connectivity in approximately 200 countries
Location Technology Combines GNSS, Wi-Fi scanning, and cellular scanning technologies to enable accurate location tracking both indoors and outdoors. Determines location using cellular networks and Wi-Fi scanning.
Battery
  • 2600mAh lithium-ion rechargeable battery, 3.7 V
  • Charging: USB Type-C or dedicated cradle (supports up to 4 devices simultaneously; approximately 5 hours for 0% to 100% charge).
  • Continuous operation for up to 100 days, depending on usage and reporting intervals
  • 200mAh lithium-ion rechargeable battery, 3.7 V
  • Supports simultaneous charging of up to 10 devices using a dedicated charging cradle
  • Continuous operation for up to 5 days, depending on usage and reporting intervals
Sensors Integrated sensors for temperature, humidity, pressure, and light, along with an IMU for motion, shock, and tilt monitoring. EU) Accelerometer for motion detection
GL) Accelerometer, light sensor
LED Indicators LED indicating device status Single LED indicating charging and device status
Air Transport Compliance Complies with FAA advisory circular AC 91.21-1D
for safe use during air transport. 		Complies with FAA advisory circular AC 91.21-1D
for safe use during air transport.
Durability IP65-rated for dust and water resistance IP65-rated for dust and water resistance
Certifications CE/UK/FCC/ISED/TELEC/KC EU model: CE/TELEC/Korea/RoHs/WEEE/Reach
GL model: FCC/ISED/CE/TELEC/RoHs/WEEE/Reach
Operating System Runs on ThreadX 2.0 operating system, with support for Delta FOTA(Firmware Over-The-Air) updates Runs on FreeRTOS (updatable via Delta FOTA)
