Wireless Communication

• Connectivity

  LTE Cat. M1 / NB-IoT / 2G FallBack

• Operating Frequency

  LTE Cat M1 : B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20,B25, B26, B27, B28, B66, B85
  LTE Cat NB2 : B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20,B25, B28, B66, B71, B85
  EGPRS : 850/900/1800/1900MHz

• Transmission Protocol

  TCP / UDP / SMS

• Bluetooth

  BLE 5.2

• wifi

GNSS

• Receiver Type

  GPS + GLONASS concurrent
  GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F
  BeiDou B1I/B1C, Galileo E1B/C
  SBAS : WAAS, EGNOS, MASA, GAGAN
  AGPS (Optional)

• Positioning Accuracy

  +/- 2.5m (*50%, 2D RMS, -130dBm, >6 Sats.)

• Update Rate

  18Hz (Single GNSS) / 5Hz (4 Concurrent GNSS)

• Cold Start (TTFF)

  < 24s

• Warm Start (TTFF)

  < 2s

• Hot Start (TTFF)

  < 1s

• Tracking Sensitivity

  Tracking: -167dBm / Reacquisition: -161dBm / Acquisition: -149dBm

Physical

• Dimensions

  96*130.9*39.88 mm (3.78*5.15*1.57 in)

• Weight

  370 g (13.05 oz)

Hardware (Interface)

• I/O

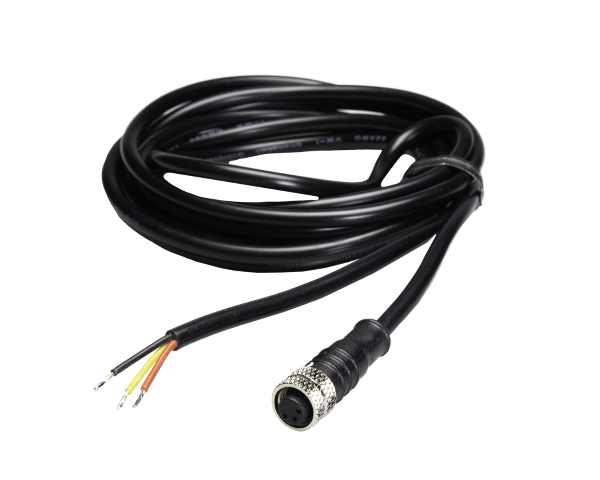

  Event cable has 3 wires, among which 2 wires are for VCC, GND and the other line is for 1-wire for temperature sensor.
  - Pin 1: Red - Ext power (DC 12V~33V) For Charging
  - Pin 2: Black - Ground
  - Pin 3: Yellow - 1-wire for temperature sensor, Optional

• CAN Port

• LED Indicators

  Network, GPS, Power

• Features

  Tamper Detection (Light sensor), Solar Charging
  Data Storage: up to 2,000 locations, in case of transmission failure or cost issue
  Reports: Possible to send location report periodically and adjust the interval within a limited range (Parking/Driving/Power detection mode support)
  Report Back up: Possible (IP address for backup server or Backup SMS reporting) *Note : Not Support Backup SMS reporting to Sensor Report (SNB/SNE Report)

• Motion Sensor

  3-Axis Accelerometer

• User Interface

  1-Wire Temperature Sensor Capable, Self Sustaining Solar Power

• SIM Card Type

  Micro SIM

Battery/Power

• Battery

  Rechargeable 3.7, 9,000mAh (Li-ion)

• Power

  Battery-Operated

• Power Supply

• Power Consumption

  Active mode : 40~60mA
  Deep sleep mode : less than 10uA (without sensors and GPS_BackUp off )
  Deep sleep mode : less than 45uA (GPS_Backup on)

Environmental

• Dust & Water Resistance

  IP67

• Operating Temperature

  -20°C~+60°C (-4°F~+140°F) *Stop charging at 45°C

• Certifications

  FCC, IC, PTCRB, CE, AT&T, T-Mobile, US Cellular, Verizon, NOM, IFT

• Region

  USA, LATAM, EU

Camera

• CPU

• OS

• Forward Camera

• Inward Camera

• Memory

• Mobile App

• ETC
